Heavy-duty vehicle dismantling solutions.

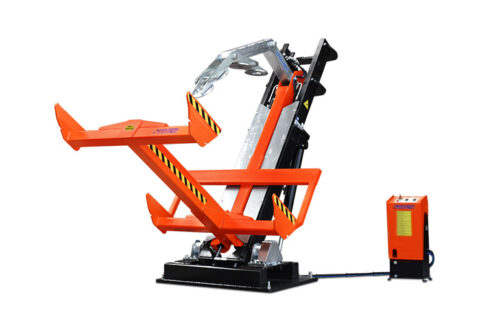

The PRT BF Tilting / Elevator Lift with Fixed Platform is a robust vehicle handling solution designed for the safe and efficient dismantling of End-of-Life Vehicles (ELVs). Its combined lifting and 90° tilting functionality provides easy access to vehicle components, allowing operators to work in an ergonomic upright position while eliminating the need to work underneath the vehicle.
The fixed platform enhances workplace safety, streamlines vehicle handling, and improves overall dismantling efficiency. An automatic hydraulic locking system ensures secure positioning throughout the dismantling process.
Product Specifications
| Specification | Details |
|---|---|
| Tilting Angle | 90° |
| Maximum Working Pressure (Tilting Hydraulic Circuit) | 200 bar (2900.7 psi) |
| Tilting Forward Time | 32 sec |
| Tilting Return Time | 36 sec |
| Lift Hydraulic Circuit Maximum Pressure | 200 bar (2900 psi) |
| Lift Ascent Time | 18 sec |
| Lift Descent Time | 13 sec |
| Support Brackets Interaxis | 1230 × 1600 mm (48.4 × 63 in) |
| Maximum Capacity | 3200 kg (6614 lbs) |
| A-Weighted Sound Pressure Level (LPA) | 45 dB |
| Electrical Power Requirement | 3 kW (4 hp) |
| Voltage | 400 V, Three-Phase, 50/60 Hz |
| Rated Current | 6.5 A |
| Electrical Connection | EC 60309 3P Plug + T, 16A Red with 394 in Cable, 3P+T 0.004 in² |
| Tilting Rig Dimensions | 3235 × 1920 × 2840 mm (127.4 × 75.6 × 112 in) |
| Control Box Dimensions | 670 × 480 × 970 mm (26.4 × 18.9 × 38 in) |
| Weight | 1575 kg (3472 lbs)* |
